4 Output I/O Extension Module

4AO extension module for wireless transceiver, transfer of encrypted data from level measurement, level switches and floating roof tanks

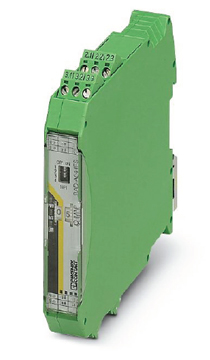

I/O Extension Module 4AO for Drexelbrook Wireless Data Transfer from Level Measurement or Level Switch
4AO Transceiver RAD-AO4-IFS

The 4 Analog Output extension module, RAD-AO4-IFS I/O,  can be used in conjunction with Radioline wireless modules and other Interface System (IFS) master devices.

DIN rail mounted and can be combined with up to 32 I/O modules for the exact setup needed.

The I/O module communicates with IFS modules such as the Indoor Transceiver RAD-900-IFS

Key Features
• Easy and tool-free I/O mapping via thumb wheel on the front
• Modular design via DIN rail connector (hot-swap capable)
• Channel-to-channel electrical isolation
• 4 analog outputs (alternatively 0/4 ... 20 mA, 0 ... 10 V DC)
• 16-bit resolution of the analog outputs (accuracy < 0.02%)

Product Type
Level monitor, Level controller, Level Switch

Request more information to see how we can help you with a level measurement solution that suits your need.
