DR5400 Radar Level Transmitter

The Drexelbrook DR5400 is a two-wire open air radar level transmitter for measuring liquids in basic process applications.

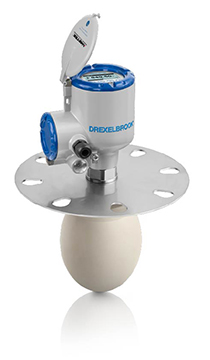

DR5400 and DR6400 Continuous radar level transmitter
DR5400, FMCW 24 GHz open air radar is a market entry level transmitter for liquids in basic process applications. This model has proven PP Drop antenna design which is insensitive to condensation.

Due to the antenna design it is ideal for level measurements up to 100m / 328 feet. To ensure sharper resolution and higher accuracy this radar level transmitter operates over a 2 GHz bandwidth, 24-26 GHz. The higher signal dynamics of the DR5400 allow the accurate detection of even the smallest level changes.

The DR5400 is a two-wire radar level measurement device with HART 7 capability, clear navigation display and touch screen user interface, which allows for easy configuration and set up.

The State-of-the-art signal processing and a large bandwidth allows this transmitter to determine the true level in the tank, even with agitated surfaces.

Key Features
• Process conditions up to 130°C / 266°F and 232 psig (16 barg)
• Proven PP Drop Antenna design insensitive to condensation
• Measuring range up to 100m / 328 ft
• E3 Year Warranty
• Two wire / 24-26 GHz

Product Type
Radar sensor, Radar level transmitter, Liquid level sensor, Tank level indicator, Water level sensor, Water level switch, Level gauge, Level transmitter

Request more information to see how we can help you with a radar level transmitter that suits your need.
