DR7500 Radar Level Transmitter

The Drexelbrook DR7500 is a 80 GHz open air radar level transmitter for measuring liquids especially in narrow tanks with long nozzles and internal obstructions like agitators or heating coils.

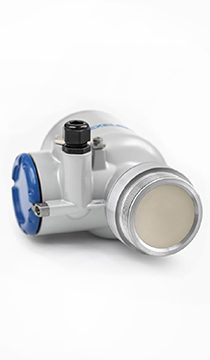

Drexelbrook DR7500 Continuous Radar Level Transmitter
Drexelbrook DR7500 is a 2-wire 80 GHz radar (FMCW) level transmitter for demanding liquid applications involving narrow tanks with long nozzles and internal obstructions like agitators or heating coils.

A very small beam angle and negligible dead zone make this FMCW radar the optimal choice for continuous, non-contact level measurement in both extremely small and very high tanks up to 100m / 328 ft.

The level transmitter is even able to measure through tank roofs made of non-conductive materials. Its PEEK Lens antenna is insensitive to deposits and well suited for corrosive environments. As the antenna is flush-mounted, there is no intrusion into the tank.

DR7500 provides accurate readings even in processes with fast changing levels. It can be used in operating temperatures of up to 150°C / 300°F and pressures up to 580 psig (40 barg) .

This level transmitter offers a wide range of flange connections and thread connections (starting from 3⁄4"). It comes with approvals for use in hazardous areas as well as extensive device diagnostics and HART®7 communication.

Key Features
• Small beam angle (4° with DN70 / 6” Lens antenna)
• PEEK flange protection against corrosive media
• Flush-mounted PEEK Lens antenna hence no intrusion into tank
• Empty tank spectrum function eliminates false reflections caused by tank internals
• 3 Year Warranty

Product Type
80 GHz Radar sensor, Radar level transmitter, Liquid level sensor, agitated liquid level sensor, Tank level indicator, Water level sensor, Water level switch, Level gauge, Level transmitter.

Request more information to see how we can help you with a radar level transmitter that suits your need.
